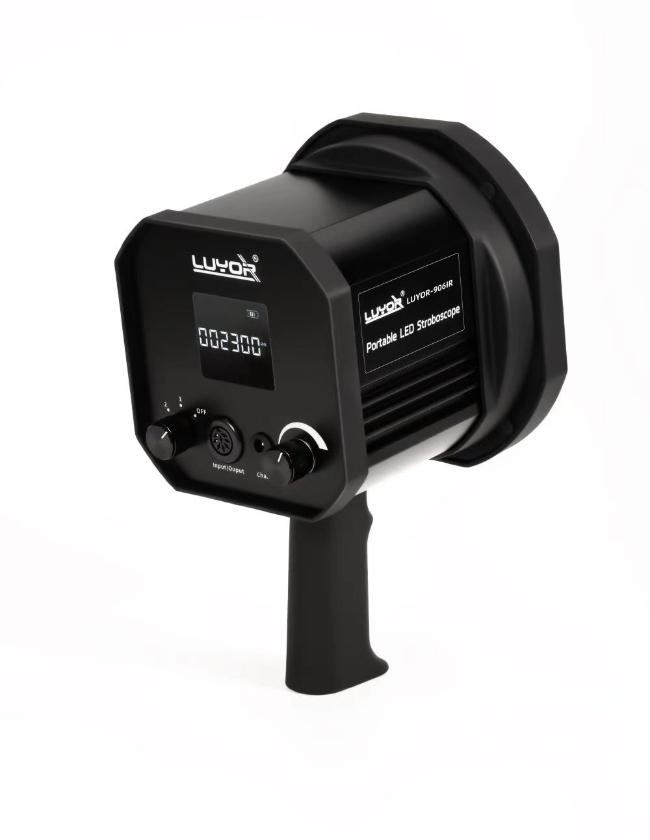

高亮度led便携式频闪仪用于工业检测

用于工业应用的高亮度led便携式频闪仪

用于工业过程监测和测量应用的频闪仪。专为高速观察重复现象而设计。它们既可用于频率测量，也可用于观察高速现象。上海路阳仪器有限公司生产有手持式频闪仪、固定式频闪仪、频闪表面质量检测系统，如果对频闪仪感兴趣，请按照网页底部联系方式联系。

频闪仪用于：

旋转机构转数的测量

装配工艺分析

机器循环次数的测量

印刷工艺检查

卷绕过程控制

高速摄影

检查生产缺陷

设备研发

频闪仪是一种工具，可以让你观察和研究一个移动的物体，它可以是旋转的或振荡的，就像它是静止的一样，也可以测量它的速度。其工作原理基于在低光照条件下观察物体在高强度光的极短闪光照射下的重复和持续运动。当你观察到运动中物体的完美静止图像时，这意味着频闪仪的闪烁频率与旋转或振荡运动的速度一致。然后，您可以在仪器上读取速度测量值本身，而无需与移动的材料有任何接触

主要元件由一个特殊的氙气灯或LED灯组成，每秒最多可发出5000次闪光，即每分钟300000次。这个非常高的频率值使您能够观察到一个在其轴上周期性移动、振动或旋转的物体，即使在非常高的振动频率下也是如此。

易于使用和操作

数字频闪仪是监测和分析工业过程的尖端解决方案。它们易于使用，可以立即集成到生产环境中，最大限度地减少操作员的学习时间。

直观的编程，通常由高级图形界面支持，允许您精确和灵活地设置参数，即使在复杂的操作条件下也能确保可靠的结果。

得益于数字技术，可以与机械和工艺完美同步，提高整体效率。

这些工具的坚固性和多功能性使其成为密集型应用的理想选择，确保了长期的可靠性。

Stroboscopes for industrial applications

High brightness led portable stroboscopes

Stroboscopes for industrial process monitoring and measurement applications. Designed for the observation of repetitive phenomena at high speed. They can be used both for frequency measurement and for the observation of high speed phenomena

Stroboscopes are used in:

Measurement of the number of revolutions of rotating organs

Assembly Process Analysis

Measurement of the number of machine cycles

Inspection of printing processes

Winding process control

High speed photo shooting

Check for production defects

Study and development of equipment

Stroboscopes are tools that allow you to observe and study a moving object, which can be rotary or oscillatory, as if it were stationary, as well as measure its speed.

The operating principle is based on the observation, in low light conditions, of the object in repetitive and constant movement, illuminated by very short flashes of high intensity light.

When you observe a perfectly still image of the object in motion, it means that the flashing frequency of the stroboscope coincides with the speed of rotation or of the oscillatory motion. You can then read on the instrument the speed measurement itself, without any contact with the moving material

The main element consists of a special Xenon or LED lamp capable of emitting up to 5000 flashes per second, or 300000 per minute. This very high frequency value allows you to observe an object that cyclically moves, vibrates or rotates on its axis even at very high frequencies.

Easy to use and program

Digital stroboscopes represent a cutting-edge solution for monitoring and analyzing industrial processes. Their easy to use allows immediate integration into production contexts, minimizing learning times for operators.

La intuitive programming, often supported by advanced graphical interfaces, allows you to set parameters with precision and adaptability, ensuring reliable results even in complex operating conditions.

Thanks to digital technology, it is possible to obtain a perfect synchronization with machinery and processes, improving overall efficiency.

The robustness and versatility of these tools make them ideal for intensive applications, ensuring long-term reliability.

频闪仪的典型应用

印刷行业中印刷速度和质量的测量

滑轮和齿轮的转速测量

检查传动带的完整性

特种加工用高速电机和电主轴的检测

旋转部件的预测性维护和预防性维护：电机、轴、齿轮、转子、叶片

印刷和移印机的质量检查

脉冲射流、水射流、吹气行为的观察

检查风扇、凸轮、齿轮齿的旋转是否正确

振动分析

音频扬声器分析

定时控制检查切割刀片的锋利度。

Typical applications of stroboscopes
